VesselJet™ Nozzle, PTFE, B55000C-1-70-TEF
Product Configuration
⚙
Inlet Connection Thread Type: NPT>
Inlet Connection Type: Brass>
Regular price
$245.00
| Quantity | Price |
|---|---|
| Buy 5 | 10% OFF |
| Buy 10 | 15% OFF |
| Buy 20 | 25% OFF |
| Buy 25 | 30% OFF |
Couldn't load pickup availability
General Information
Description

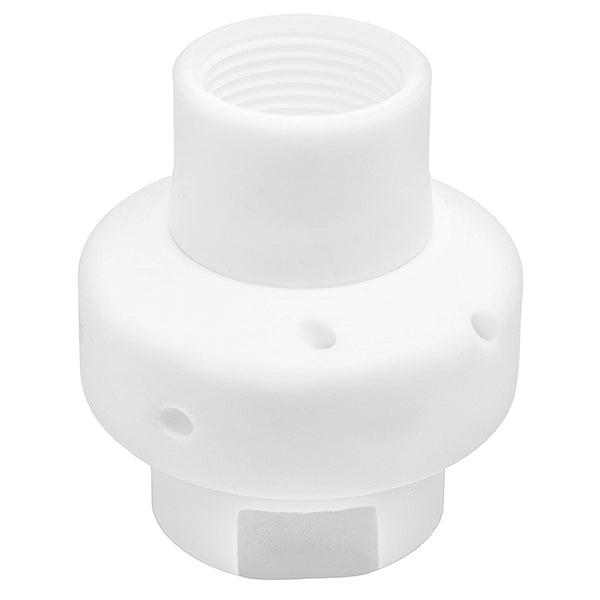

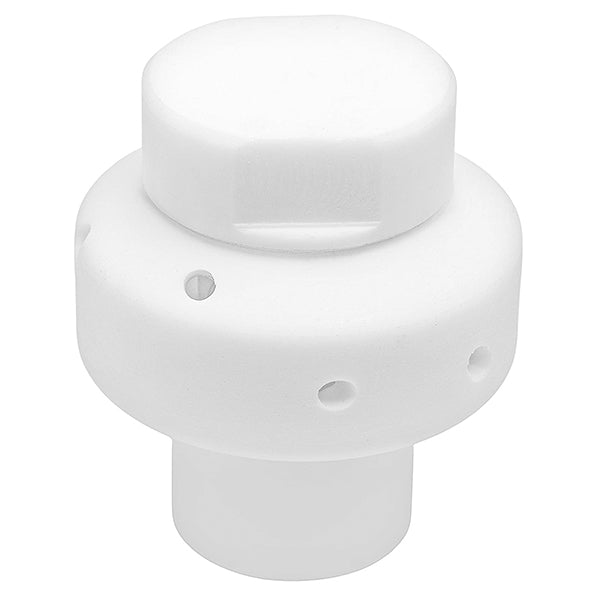

These PTFE rotating nozzles resist harsh chemicals and provide excellent cleaning. They are ideal for chemical processing, food processing, pharmaceutical tanks and pulp and paper.
- With rotation driven by the reactionary force of the cleaning liquid, these rotating nozzles provide excellent cleaning and rinsing and are especially well-suited to clean-in-place (CIP) systems.
- Spray angles range from 180° to 360° and can be used to clean specific areas or the entire tank interior.
- Made of corrosion- and chemical-resistant PTFE fluoropolymer resin, both models offer peak performance when used with debris-free liquid and deliver greater impact than static spray balls.
- The rotating spray heads on 27500-R nozzles can be easily removed from the body for inspection and maintenance.
- ATEX-certified versions available.
- Spraying Systems Co. Part Number: B55000C-1-70-TEF
Our Equivalent Part Number: B27500C-1-70-TEF
Note: ( Spraying Systems Co. part numbers are used for reference only and belong to their respective owners. )
Specification Summary
Impact Group
Medium Impact
Inlet Connection Size
1 in
Inlet Connection Thread Type
BSPT
Inlet Connection Type
Threaded (Female BSPT)
Liquid Flow Rate Range
25 - 102 gpm
Material Composition
PTFE fluoropolymer resin
Maximum Recommended Tank Diameter
Up to 20 ft
Maximum Temperature
200 °F
Minimum Tank Opening
2.8 in
Operating Principle
Fluid-driven Reactionary Force
Product Type
Nozzle
Spray Coverage
270° up
×
Standard hydraulic nozzles range in connection size from 1/8” threaded nozzles up to those with 12” flange connections. Larger connection sizes typically have larger flow rates but a wide variety of configurations are available to meet your application needs.
×
Threaded nozzles are typically offered with tapered pipe threads. NPT and BSPT threads are the most common. Other thread types are available for selected nozzles.
Most nozzles are available with NPT or BSPT connections. Other threaded connections are available on select nozzles and additional connection types, such as flange and quick-connect, are also common. Some nozzles are also available with sanitary connections.
×
The range of flow (typically measured in gallons per minute or liters per minute) published in our catalog for a given nozzle.
The catalog offers flow rates only for selected operating pressures so greater flow may be possible at pressures not shown in the catalog.
×
Spray nozzles are manufactured from a wide variety of materials that have been determined to meet the usual requirements of the applications most commonly associated with that type of nozzle. Standard materials include brass, steel, various stainless steels, hardened stainless steels, many plastics and various carbides. Spray nozzles can also be supplied in other materials upon special request. Materials of construction affect nozzle wear life and resistance to corrosion and abrasion.
For more information on nozzle materials, download our technical reference document or contact your local Spraying Systems Co. sales rep.
×
The largest interior tank diameter (measured in feet or meters) for which a specific TankJet nozzle should be used.
×
Our products are grouped into these primary product types:
- Nozzle - Body (a nozzle body without a spray tip)
- Tip (a spray tip without a nozzle body)
- Assembly (a complete nozzle assembly including both a nozzle body and a spray tip)
×

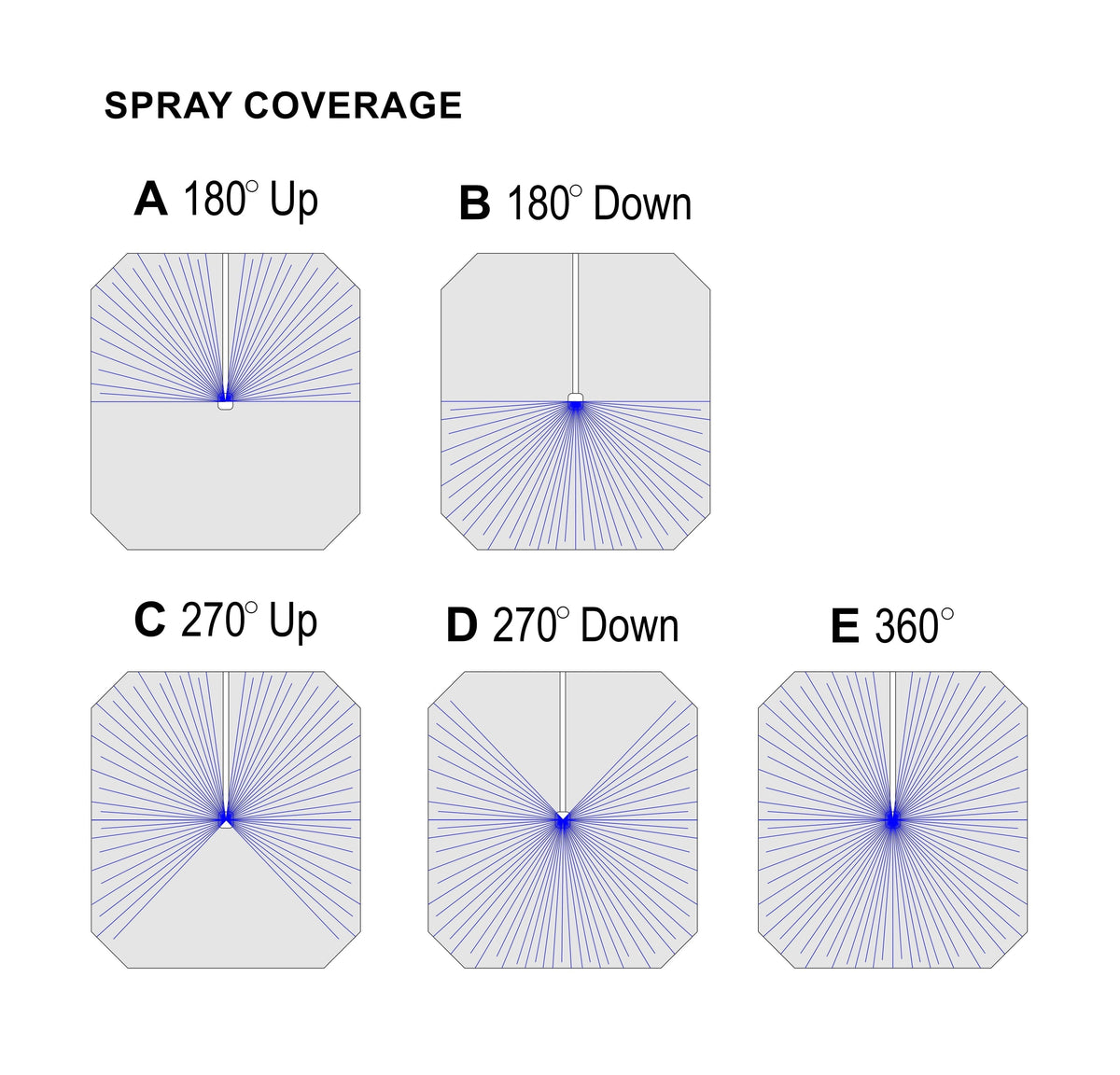

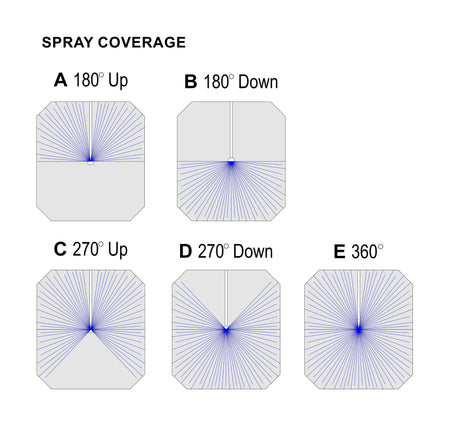

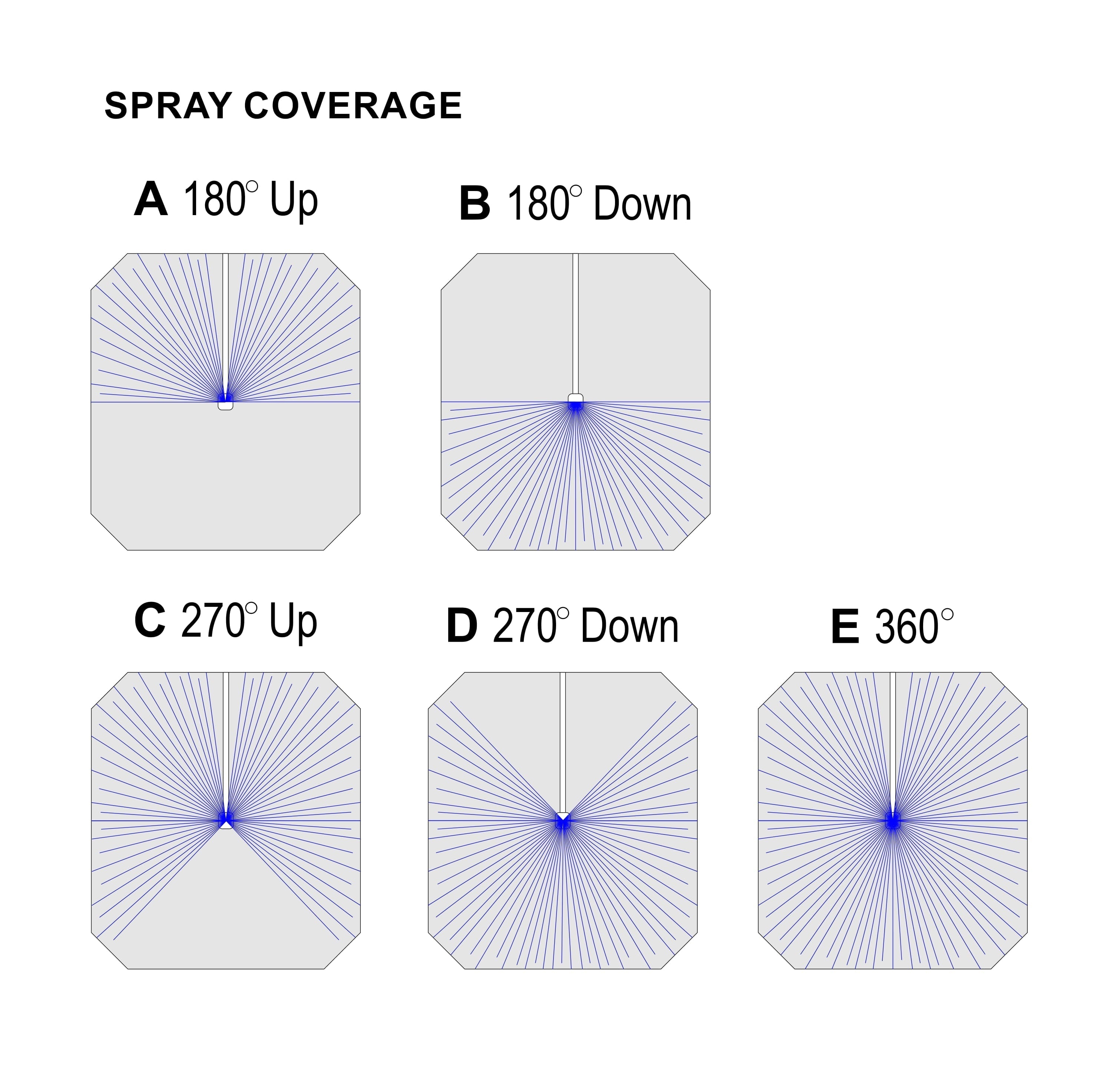

Spray Coverage refers to the portion of the vessel to be cleaned. TankJet nozzles offering full 360° coverage clean all interior tank surfaces. For vessels with an open top, TankJet nozzles with 180° downward coverage are available. Other coverage patterns are also available.
×
We offer the “brand” filter as a convenience because many Spraying Systems Co. nozzle brand names are recognized by customers around the world, such as VeeJet® flat spray nozzles and FullJet® full cone nozzles. Most of our nozzle brands are registered trademarks in the United States and in other countries around the world.
×
The largest interior tank diameter (measured in feet or meters) for which a specific TankJet nozzle should be used.
×
The position in which the tank cleaning nozzle may be inserted into the tank. All TankJet® tank cleaning products operate properly when hanging vertically downward. Some also operate when inserted upward, horizontally or at various angles into the tank.
×
The range of flow (typically measured in gallons per minute or liters per minute) published in our catalog for a given nozzle.
The catalog offers flow rates only for selected operating pressures so greater flow may be possible at pressures not shown in the catalog.
Operating Pressure Range
10 - 50 psi
Specifications
Configuration
Inlet Connection Size
1 in
Inlet Connection Thread Type
BSPT
Inlet Connection Type
Threaded (Female BSPT)
Material Composition
PTFE fluoropolymer resin
Product Type
Nozzle
Model
27500
Performance
Operating Pressure Range
10 - 50 psi
Product Category
Brand
TankJet®
Impact Group
Medium Impact
Standard Features
Liquid Flow Rate Range
25 - 102 gpm
Maximum Free Passage
150 µm
Maximum Recommended Tank Diameter
Up to 20 ft
Maximum Temperature
200 °F
Minimum Tank Opening
2.8 in
Operating Principle
Fluid-driven Reactionary Force
Recommended Strainer Mesh
100
Spray Coverage
270° up
Tank Mounting Options
Vertical/Downward, Vertical/Upward, Horizontal, 45° Upward, 45° Downward
