VesselJet™ Nozzle, B36500A-316SS45-316SS
Regular price
$499.00
Couldn't load pickup availability
Product Configuration
⚙
Inlet Connection Thread Type: NPT>
Inlet Connection Type: Brass>
| Quantity | Price |
|---|---|
| Buy 5 | $465 / Each |
| Buy 10 | $433 / Each |
| Buy 20 | $403 / Each |
| Buy 50 | $376 / Each |
General Information
Description

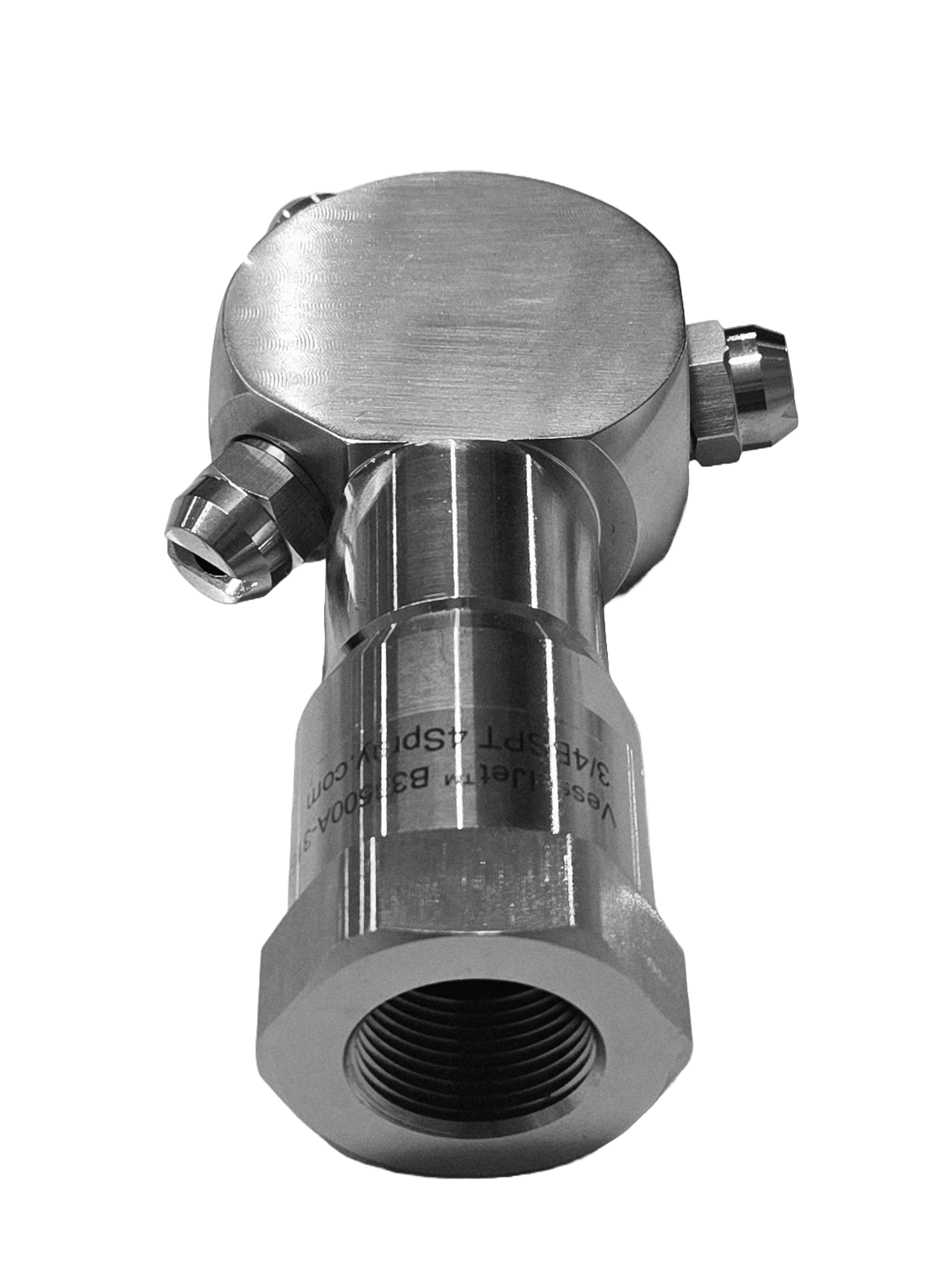

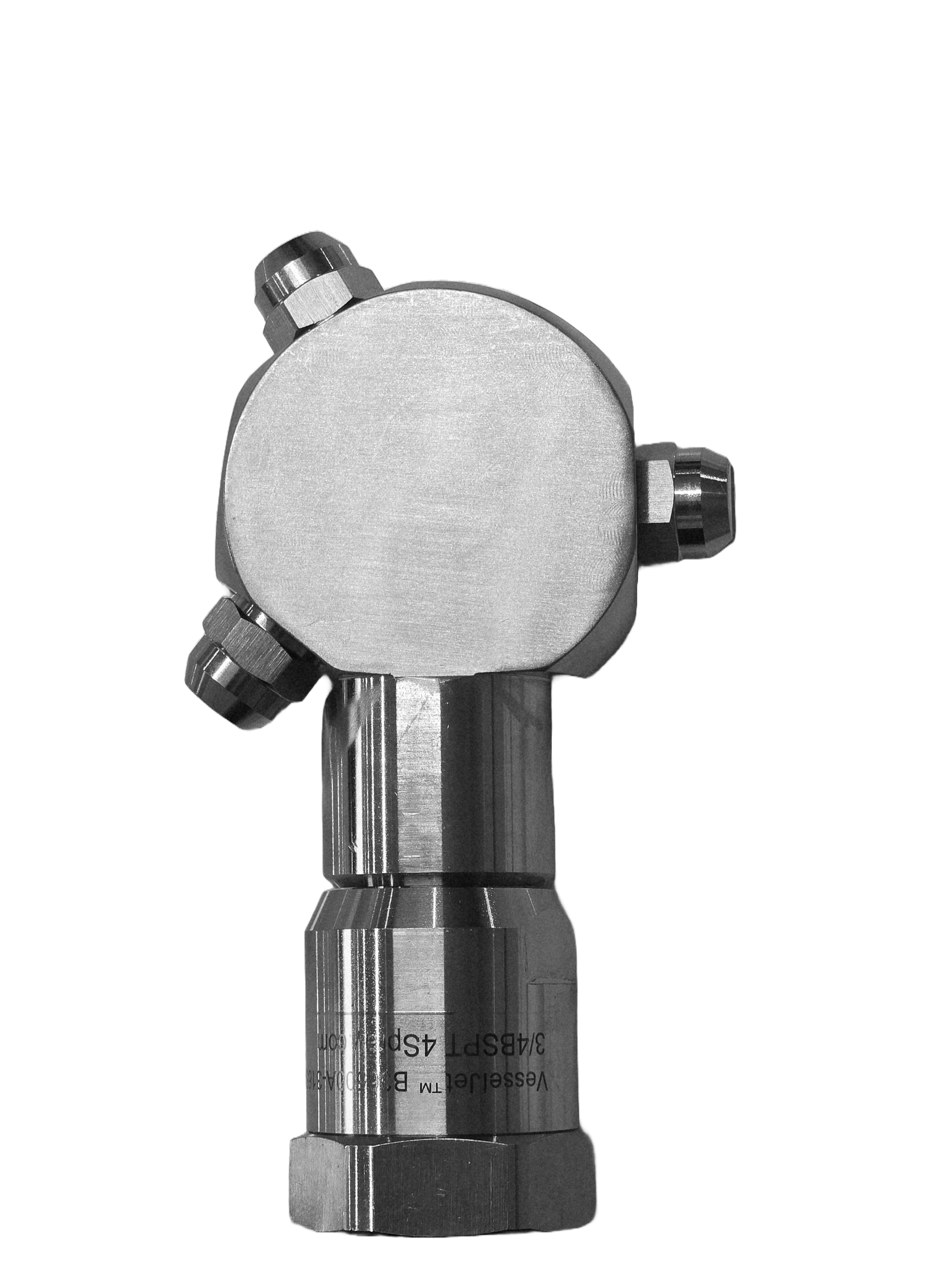

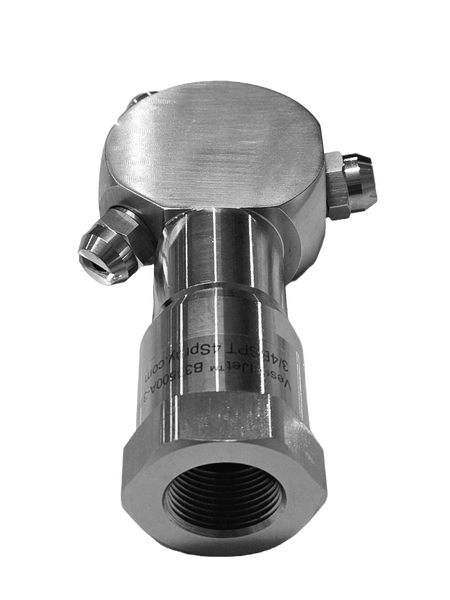

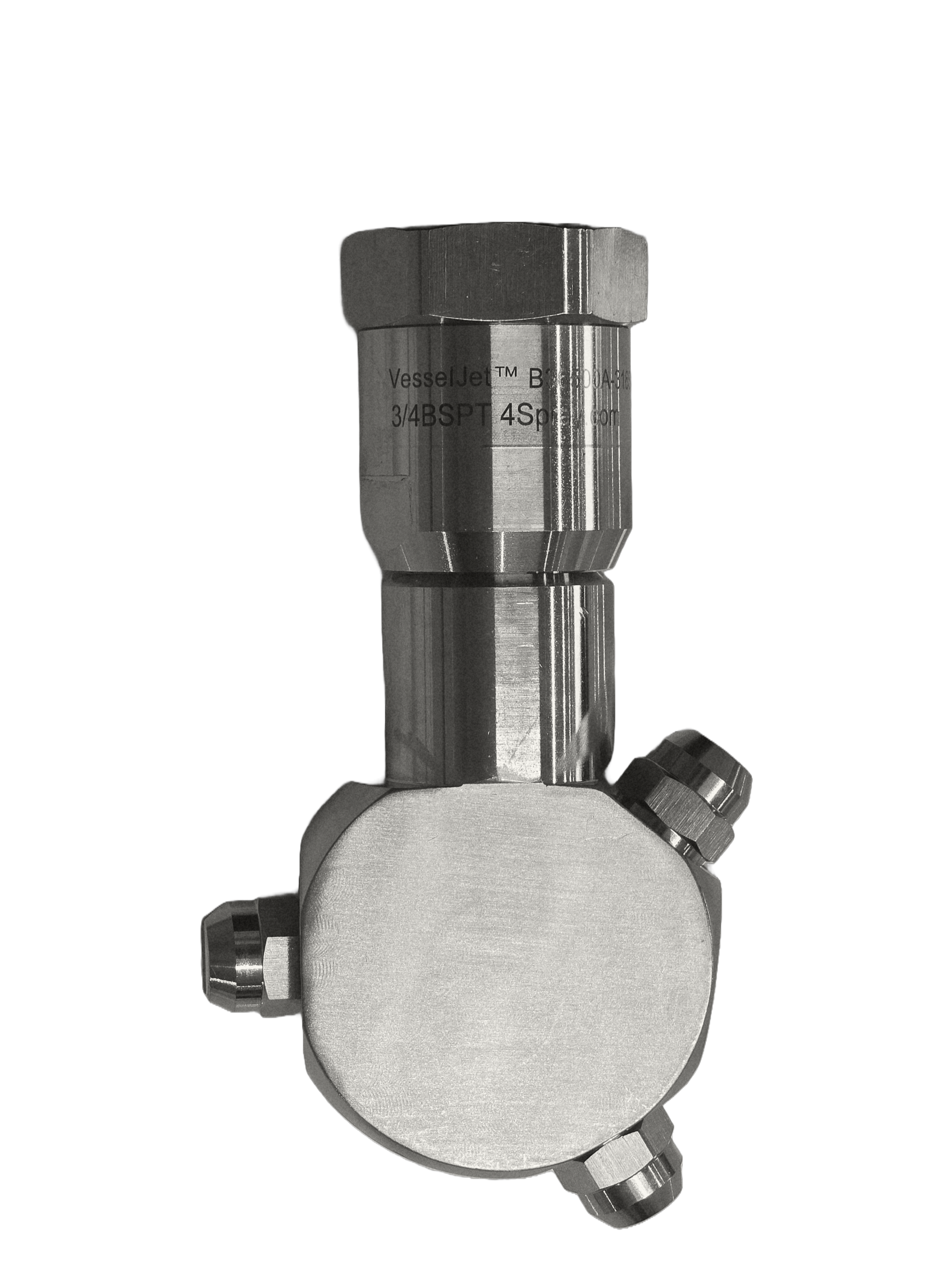

- This rotating spray unit with flat-pattern output is designed to rinse and clean compact vessels such as small tanks and barrels commonly used in food and chemical applications.
- Cleaning fluid flow powers the rotation of a spray head equipped with three flat-pattern outlets, creating continuous internal movement during operation.
- Strategically placed openings ensure uniform distribution, reaching all interior surfaces of the container.
- The unit is manufactured from durable, corrosion-resistant materials and is rated for sustained use at operating temperatures up to 350°F (177°C).
- Optimal results are achieved when operated with clean, single-pass, or low-particulate cleaning fluids.
- Part Number: B36500A-316SS45-316SS
Specification Summary
×
The highest fluid temperature this nozzle is rated to handle continuously. Running above this limit can shorten the part's service life or affect its seals and materials — check your process temperature against this rating before ordering, and contact us if you need a higher-temperature option.
×
How the nozzle achieves its rotating spray pattern. A fluid-driven design uses the reaction force of the liquid itself to rotate the nozzle — no motor, electricity, or external power source is required, so it runs on nothing but your system's existing flow and pressure.
×
We stock this product across a range of inlet sizes, from small threaded ports up to larger flanged connections. Pick your size based on how much flow your system needs to move — bigger inlets handle higher volumes — and match it to the piping you're connecting into.
×
Most of our threaded fittings use a tapered-thread standard — NPT (National Pipe Thread) is the most common in North America, with BSPT (British Standard Pipe Taper) common internationally. Check your existing plumbing or fittings to confirm which standard your system uses before ordering; other thread types are available on request.
×
NPT and BSPT threads cover most of our catalog. A number of models also come in flanged or quick-connect versions, and sanitary (hygienic) connections are available on select nozzles for food, beverage, and pharmaceutical applications.
×
Flow figures are given in gallons or liters per minute at the specific operating pressures we've listed. Running the nozzle at a higher pressure than shown will generally increase flow beyond these published numbers — contact us if you need a rating at a pressure we haven't listed.
×
This part is available in different material options to match your chemical exposure, wear conditions, and expected service life. See the option selected above for what's offered on this model, or contact us if you need a material not listed here.
×
The largest tank diameter a given rotating nozzle is built to clean effectively. Choose a model rated for a diameter that matches or exceeds your tank's interior width so the spray pattern reaches all the way to the walls.
×
We sell these three ways, depending on what you already have on hand: just the body (no tip included), just the tip (fits onto a body you already own), or the full assembly with both pieces included.
×
Flat-spray tips don't have a round outlet, so we give an 'equivalent diameter' instead — the size a circular opening would need to be to pass the same amount of flow. It's a reference number for comparing flow capacity across different tip shapes.
×
.
×
This tells you how much of the tank interior the nozzle reaches. A full 360° model cleans every interior surface; a 180° model sprays downward only, which works well for open-top tanks. Other coverage patterns are available if neither fits your setup.
×
How the nozzle can be mounted inside the tank. Every model in this line works hanging straight down; several also work mounted upward, sideways, or at an angle, depending on your tank's layout.
×
How the nozzle can be mounted inside the tank. Every model in this line works hanging straight down; several also work mounted upward, sideways, or at an angle, depending on your tank's layout.
×
This tells you how much of the tank interior the nozzle reaches. A full 360° model cleans every interior surface; a 180° model sprays downward only, which works well for open-top tanks. Other coverage patterns are available if neither fits your setup.
×
Many of our part numbers include a number that reflects the nozzle's output, generally tied to how much it delivers at its rated spray pressure. It's a quick way to compare capacity across similar nozzles without pulling up the full flow chart — contact us if you'd like help reading a specific part number.
×
×
×
We sell these three ways, depending on what you already have on hand: just the body (no tip included), just the tip (fits onto a body you already own), or the full assembly with both pieces included.
×
.
×
×
Specifications
Inlet Connection Thread Type
BSPT
Inlet Connection Type
Threaded (Female BSPT)
Inlet Connection Size
3/4 in
Capacity Size
45
Tank Mounting Options
Vertical/Downward, Vertical/Upward
Minimum Tank Opening
2.4 in
Spray Coverage
360°
Operating Principle
Fluid-driven Reactionary Force
Impact Group
Low
Maximum Recommended Tank Diameter
Up to 8 ft
Maximum Temperature
350 °F
Liquid Flow Rate Range
22.9 - 55.1 gpm
Maximum Free Passage
74 µm
Recommended Strainer Mesh
200
Operating Pressure Range
10 - 60 psi
Product Type
Tank Cleaning Nozzle
Brand
VesselJet™
Model
36500
Material
316 Stainless Steel
