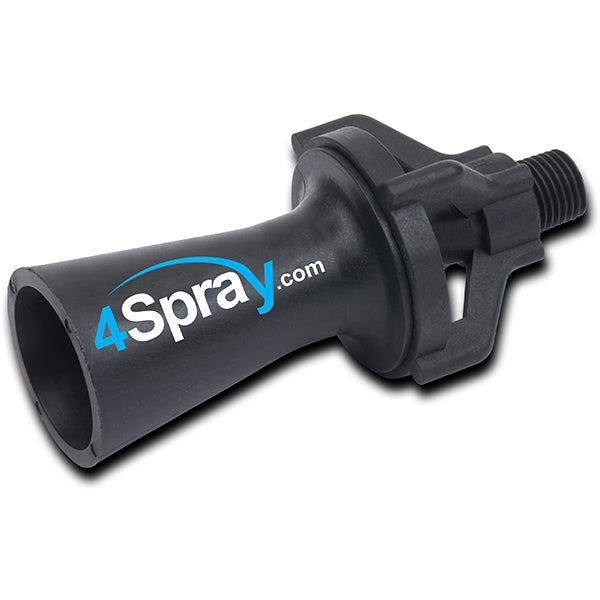

MixJet™ Tank Mixing Eductor, Polypropylene, 93100-3/8-PP
Regular price
$28.17
Couldn't load pickup availability
Product Configuration
⚙
Inlet Connection Thread Type: NPT>
Inlet Connection Type: Brass>
| Quantity | Price |
|---|---|
| Buy 5 | 5% OFF |
| Buy 10 | 10% OFF |
| Buy 20 | 15% OFF |
| Buy 50 | 20% OFF |
General Information
Description

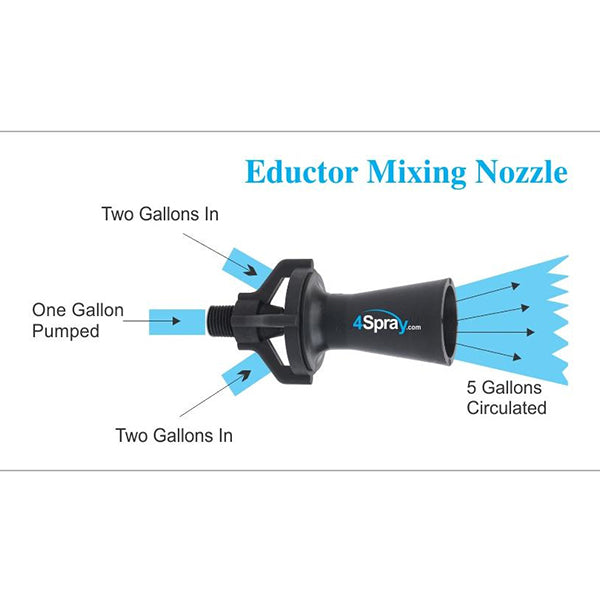

- Uses fluid-driven induction to increase solution movement within the tank
- Internal flow path is designed to allow small particulates to pass while limiting blockage
- Compact form factor helps reduce interference with existing in-tank components
- Intended for installation inside the tank without the need for external mounting hardware
- Commonly used in anodizing, electroplating, mixing, paint booth, phosphating, plating, rinsing, and stripping operations.
- Part Number: 93100-3/8-PP

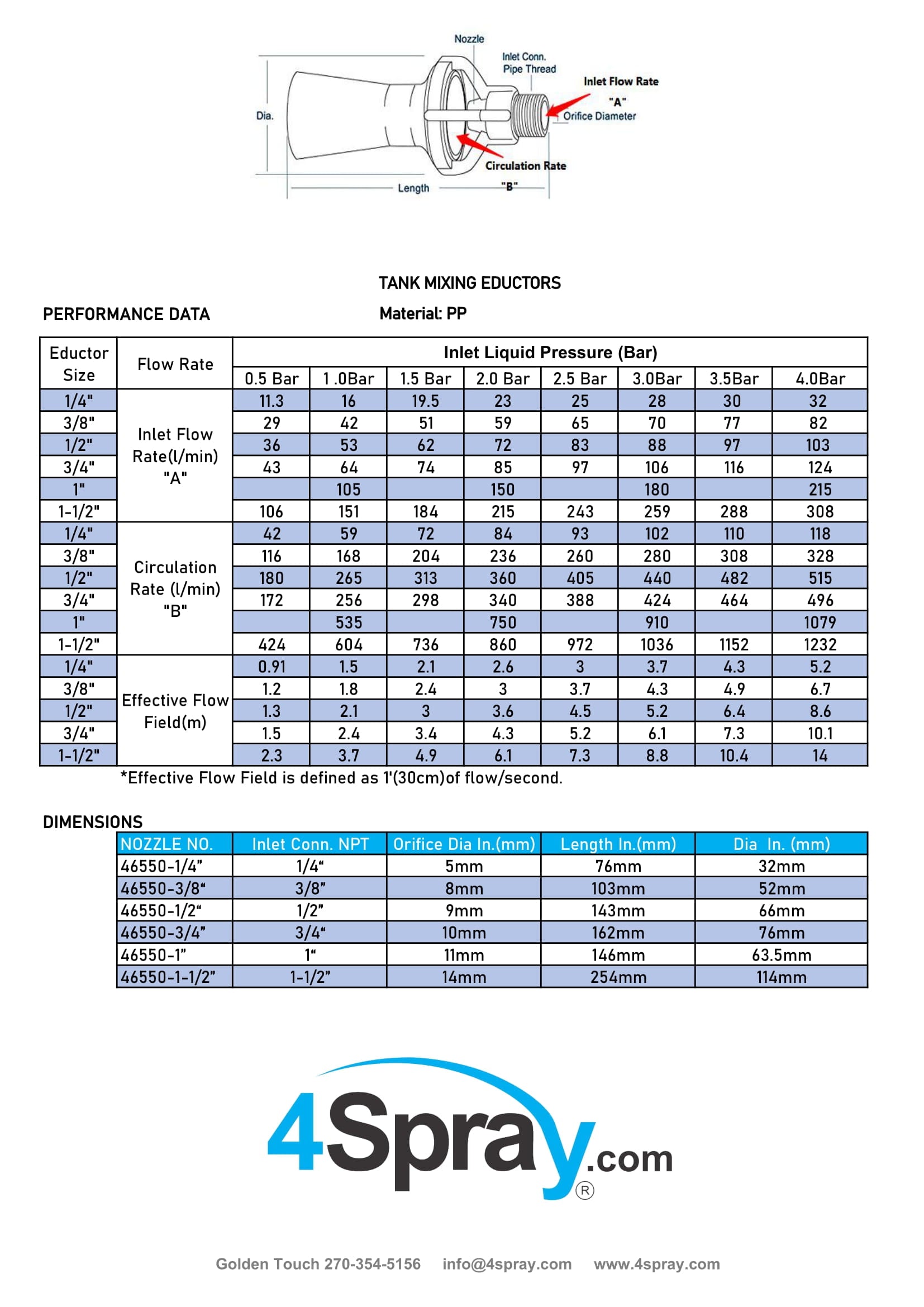

Specifications
Fit & Connections
ⓘThread Type
NPT
ⓘInlet Size
3/8 in
Materials & Build
ⓘProduct Type
Tank Mixing Eductor
ⓘMaterial
Polypropylene
Material Code
PP
×

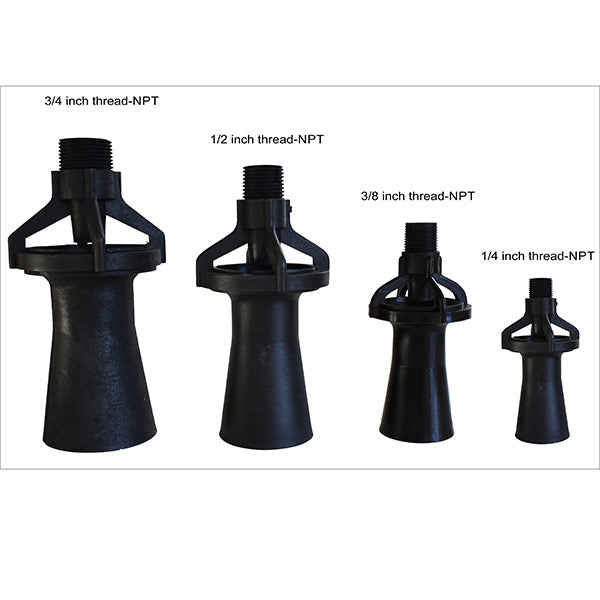

We stock this product across a range of inlet sizes, from small threaded ports up to larger flanged connections. Pick your size based on how much flow your system needs to move — bigger inlets handle higher volumes — and match it to the piping you're connecting into.
×
We sell these three ways, depending on what you already have on hand: just the body (no tip included), just the tip (fits onto a body you already own), or the full assembly with both pieces included.
×
Most of our threaded fittings use a tapered-thread standard — NPT (National Pipe Thread) is the most common in North America, with BSPT (British Standard Pipe Taper) common internationally. Check your existing plumbing or fittings to confirm which standard your system uses before ordering; other thread types are available on request.
×
This part is available in different material options to match your chemical exposure, wear conditions, and expected service life. See the option selected above for what's offered on this model, or contact us if you need a material not listed here.
