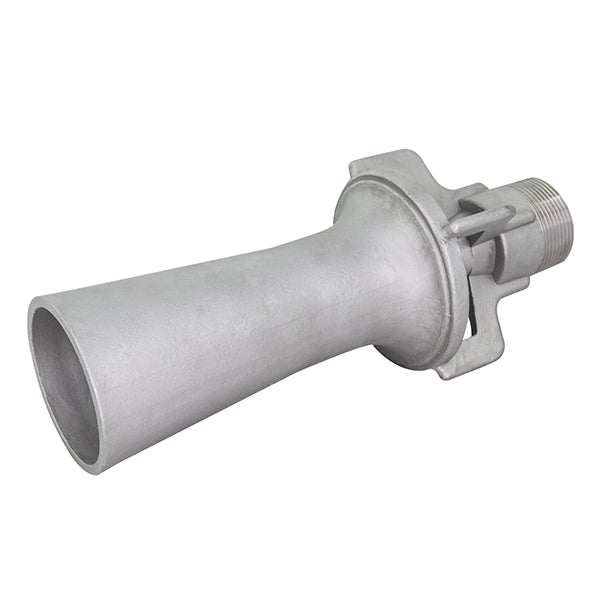

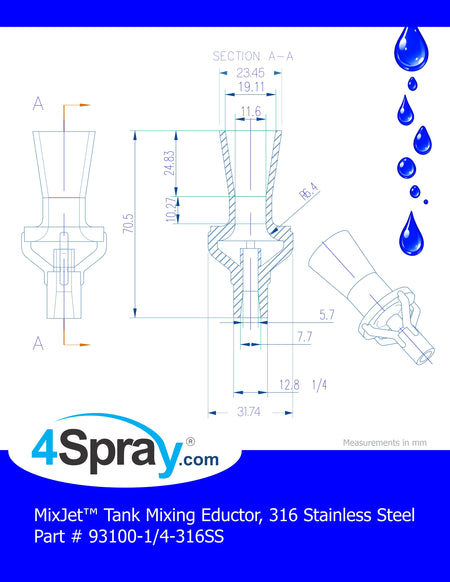

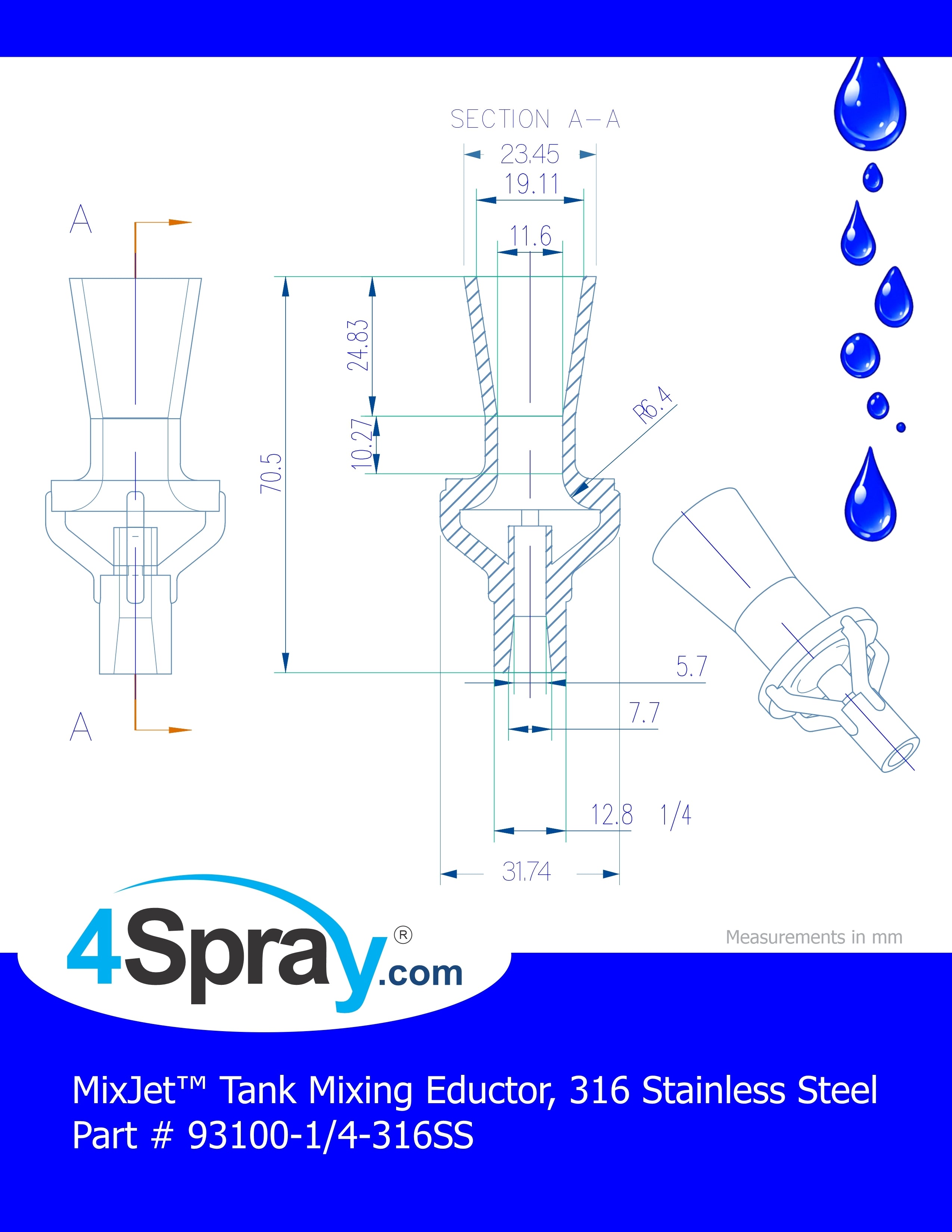

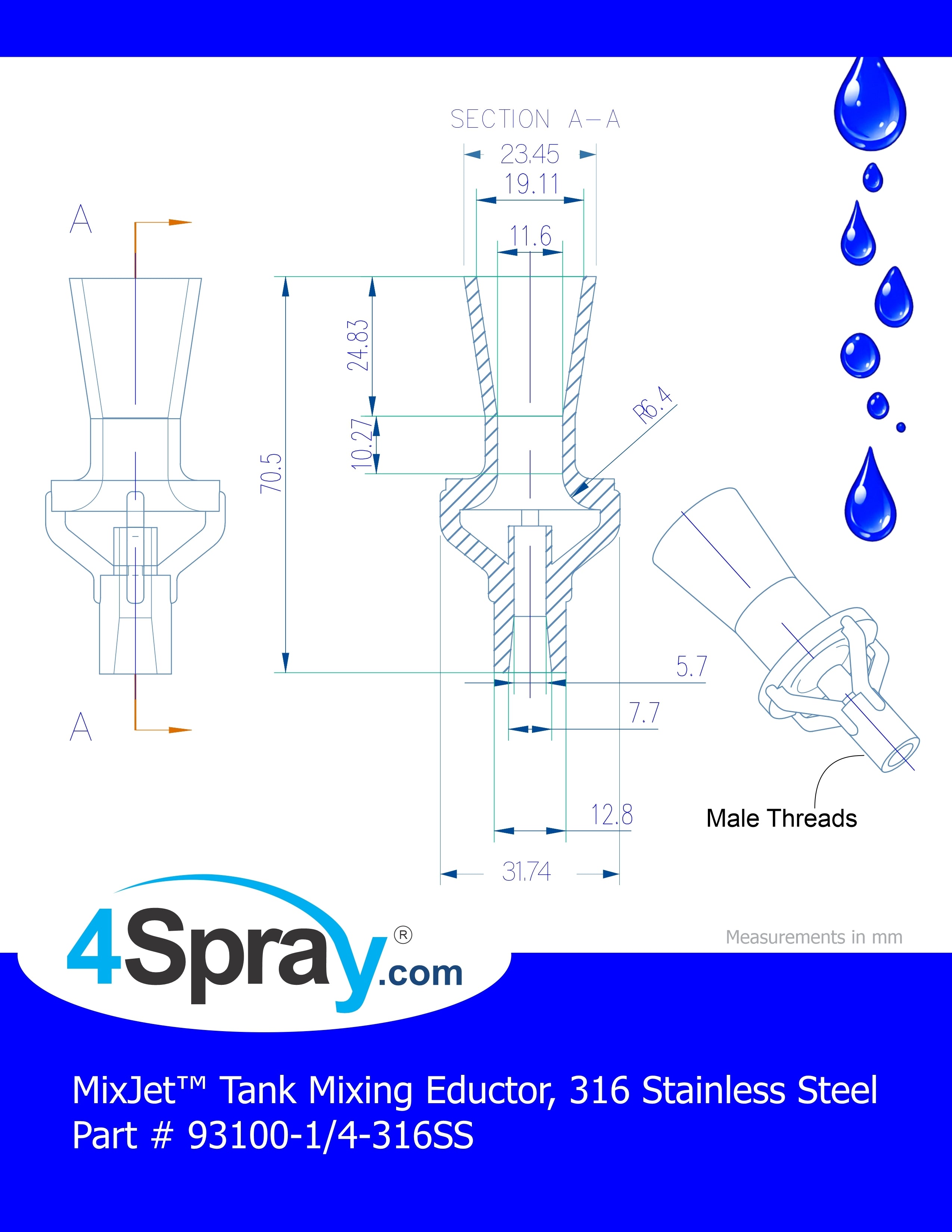

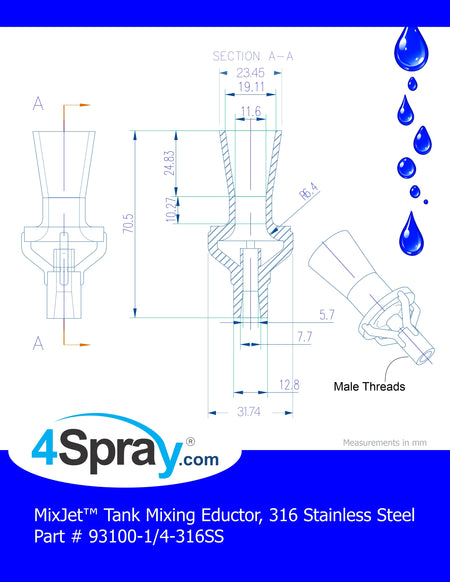

MixJet™ Tank Mixing Eductor, 316 Stainless Steel, 93100-1/4-316SS
Regular price
$28.07
Couldn't load pickup availability
Product Configuration
⚙
Inlet Connection Thread Type: NPT>
Inlet Connection Type: Brass>
| Quantity | Price |
|---|---|
| Buy 5 | 5% OFF |
| Buy 10 | 10% OFF |
| Buy 20 | 15% OFF |
| Buy 50 | 20% OFF |
General Information
Description
- Uses fluid-driven induction to increase solution movement within the tank
- Internal flow path is designed to allow small particulates to pass while limiting blockage
- Compact form factor helps reduce interference with existing in-tank components
- Intended for installation inside the tank without the need for external mounting hardware
- Commonly used in anodizing, electroplating, mixing, paint booth, phosphating, plating, rinsing, and stripping operations.
- Part Number: 93100-1/4-316SS
Specification Summary
Inlet Connection Size
1/4 in
Inlet Connection Thread Type
NPT
Material
316 Stainless Steel
Product Type
Tank Mixing Eductor
×
Threaded inlet connections are commonly provided using tapered pipe thread standards. NPT and BSPT are the most frequently used thread types. Additional thread options may be available for specific configurations or application requirements.
×
Hydraulic nozzle components are offered in a wide range of inlet sizes, from smaller threaded connections to larger flanged configurations. Inlet size selection is typically based on required flow rate and system design considerations. Larger inlet sizes generally support higher flow capacities, and multiple size options are available to match different applications. ×
Most nozzles are available with NPT or BSPT connections. Other threaded connections are available on select nozzles and additional connection types, such as flange and quick-connect, are also common. Some nozzles are also available with sanitary connections. ×
The range of flow (typically measured in gallons per minute or liters per minute) published in our catalog for a given nozzle.
The catalog offers flow rates only for selected operating pressures so greater flow may be possible at pressures not shown in the catalog.
×
Spray and process components are manufactured using materials selected to meet common industrial operating conditions. Standard material options include brass, carbon steel, various stainless steel grades, hardened stainless steels, engineered plastics, and carbide materials. Material choice influences corrosion resistance, abrasion resistance, and expected service life. Alternate materials may be available upon request.×
Products are typically categorized based on supplied configuration:
- Nozzle Body: Supplied without a spray tip
- Tip: Supplied without a nozzle body
- Assembly: Complete unit including both nozzle body and spray tip
×
Products are typically categorized based on supplied configuration:
- Nozzle Body: Supplied without a spray tip
- Tip: Supplied without a nozzle body
- Assembly: Complete unit including both nozzle body and spray tip
×
For flat spray designs with non-circular outlets, equivalent orifice diameter is used as a reference measurement. This value represents the diameter of a round opening that would produce the same flow rate.
×
Overall component length, typically measured end to end in either inches or millimeters.
×
Spray Coverage refers to the portion of the vessel to be cleaned. TankJet nozzles offering full 360° coverage clean all interior tank surfaces. For vessels with an open top, TankJet nozzles with 180° downward coverage are available. Other coverage patterns are also available.
×
The position in which the tank cleaning nozzle may be inserted into the tank. All TankJet® tank cleaning products operate properly when hanging vertically downward. Some also operate when inserted upward, horizontally or at various angles into the tank.
×
The position in which the tank cleaning nozzle may be inserted into the tank. All TankJet® tank cleaning products operate properly when hanging vertically downward. Some also operate when inserted upward, horizontally or at various angles into the tank. ×
Spray Coverage refers to the portion of the vessel to be cleaned. TankJet nozzles offering full 360° coverage clean all interior tank surfaces. For vessels with an open top, TankJet nozzles with 180° downward coverage are available. Other coverage patterns are also available.×
We offer the “brand” filter as a convenience because many Spraying Systems Co. nozzle brand names are recognized by customers around the world, such as VeeJet® flat spray nozzles and FullJet® full cone nozzles. Most of our nozzle brands are registered trademarks in the United States and in other countries around the world.
Specifications
Configuration
Inlet Connection Size
1/4 in
Inlet Connection Thread Type
NPT
Material Code
SS
Material
316 Stainless Steel
Product Type
Tank Mixing Eductor
