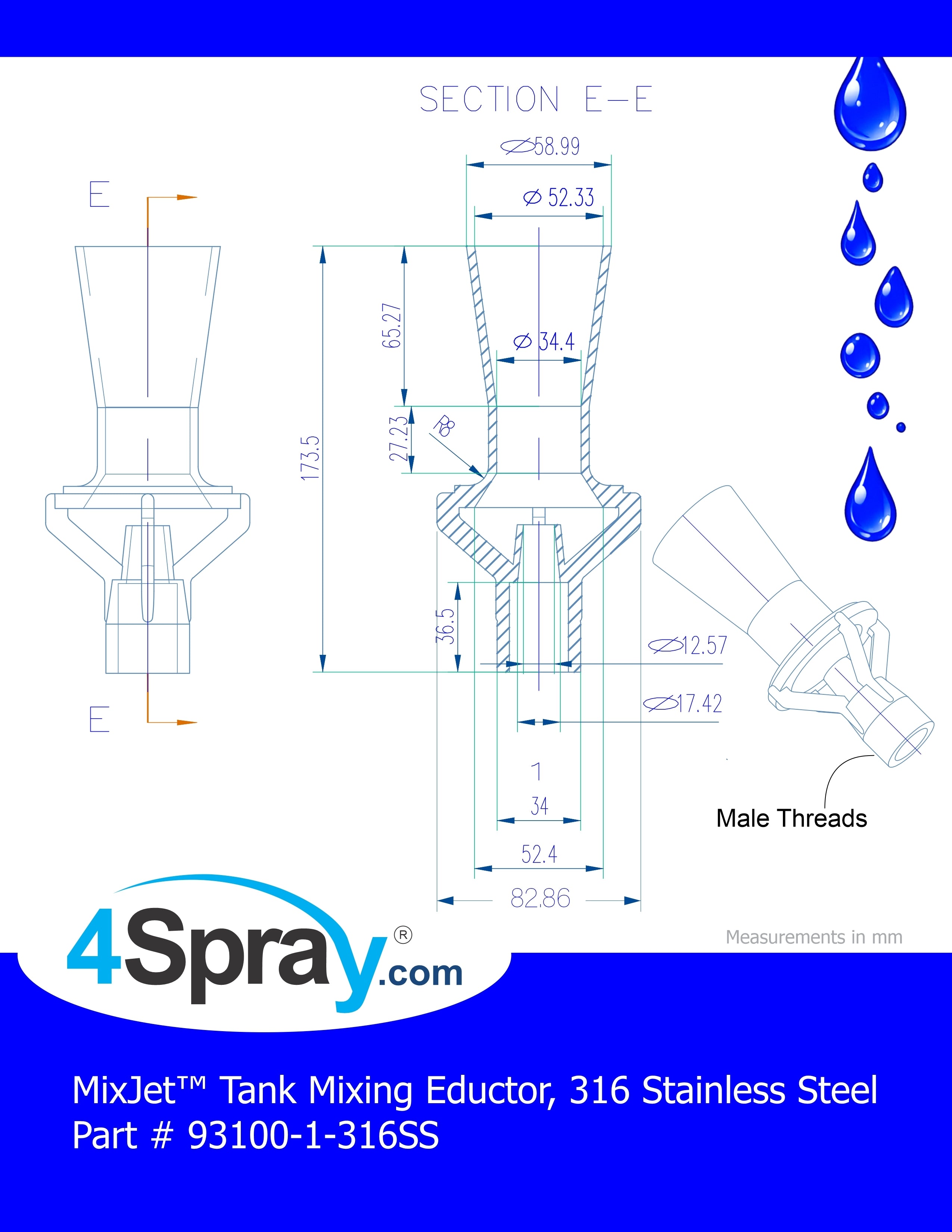

MixJet™ Tank Mixing Eductor, 316 Stainless Steel, 93100-1-316SS
Regular price
$112.00
Couldn't load pickup availability
Product Configuration
⚙
Inlet Connection Thread Type: NPT>
Inlet Connection Type: Brass>
| Quantity | Price |
|---|---|
| Buy 5 | 5% OFF |
| Buy 10 | 10% OFF |
| Buy 20 | 15% OFF |
| Buy 50 | 20% OFF |
General Information
Description
- Uses fluid-driven induction to increase solution movement within the tank
- Internal flow path is designed to allow small particulates to pass while limiting blockage
- Compact form factor helps reduce interference with existing in-tank components
- Intended for installation inside the tank without the need for external mounting hardware
- Commonly used in anodizing, electroplating, mixing, paint booth, phosphating, plating, rinsing, and stripping operations.
- Part Number: 93100-1-316SS
Specification Summary
Inlet Connection Size
1 in
Inlet Connection Thread Type
NPT
Material
316 Stainless Steel
Product Type
Tank Mixing Eductor
×
Most of our threaded fittings use a tapered-thread standard — NPT (National Pipe Thread) is the most common in North America, with BSPT (British Standard Pipe Taper) common internationally. Check your existing plumbing or fittings to confirm which standard your system uses before ordering; other thread types are available on request.
×
We stock this product across a range of inlet sizes, from small threaded ports up to larger flanged connections. Pick your size based on how much flow your system needs to move — bigger inlets handle higher volumes — and match it to the piping you're connecting into.
×
NPT and BSPT threads cover most of our catalog. A number of models also come in flanged or quick-connect versions, and sanitary (hygienic) connections are available on select nozzles for food, beverage, and pharmaceutical applications.
×
Flow figures are given in gallons or liters per minute at the specific operating pressures we've listed. Running the nozzle at a higher pressure than shown will generally increase flow beyond these published numbers — contact us if you need a rating at a pressure we haven't listed.
×
We offer this part in a range of materials — brass, carbon steel, several stainless steel grades, hardened stainless, engineered plastics, and carbide — so you can match it to your chemical exposure, wear conditions, and expected service life. Let us know if you need a material not listed here.
×
We sell these three ways, depending on what you already have on hand: just the body (no tip included), just the tip (fits onto a body you already own), or the full assembly with both pieces included.
×
We sell these three ways, depending on what you already have on hand: just the body (no tip included), just the tip (fits onto a body you already own), or the full assembly with both pieces included.
×
Flat-spray tips don't have a round outlet, so we give an 'equivalent diameter' instead — the size a circular opening would need to be to pass the same amount of flow. It's a reference number for comparing flow capacity across different tip shapes.
×
Total length of the part, end to end, given in inches or millimeters.
×
This tells you how much of the tank interior the nozzle reaches. A full 360° model cleans every interior surface; a 180° model sprays downward only, which works well for open-top tanks. Other coverage patterns are available if neither fits your setup.
×
How the nozzle can be mounted inside the tank. Every model in this line works hanging straight down; several also work mounted upward, sideways, or at an angle, depending on your tank's layout.
×
How the nozzle can be mounted inside the tank. Every model in this line works hanging straight down; several also work mounted upward, sideways, or at an angle, depending on your tank's layout.
×
This tells you how much of the tank interior the nozzle reaches. A full 360° model cleans every interior surface; a 180° model sprays downward only, which works well for open-top tanks. Other coverage patterns are available if neither fits your setup.
Specifications
Configuration
Inlet Connection Size
1 in
Inlet Connection Thread Type
NPT
Material Code
SS
Material
316 Stainless Steel
Product Type
Tank Mixing Eductor
