VesselJet® Nozzle, 42800-360-3/4B-12G-SS316
Regular price
$415.00
Couldn't load pickup availability
Product Configuration
⚙
Inlet Connection Thread Type: NPT>
Inlet Connection Type: Brass>
| Quantity | Price |
|---|---|
| Buy 5 | $386 / Each |
| Buy 10 | $359 / Each |
| Buy 20 | $334 / Each |
| Buy 50 | $311 / Each |
VesselJet® 42800 series compact rotating stainless steel washers. The smaller sibling of the 36500, for drums, kegs, and small tanks up to 5 ft (1.5 m) across. The same self-rotating three-orifice head and 316 stainless steel construction in a shorter body that also passes through a 60 mm (2.36") opening. Mounts vertically or horizontally.
Choosing the right model
- Spray coverage. 360 — the three-orifice rotating head covers the full interior.
- Inlet size and thread. 3/4" female pipe thread. The letter after the size is the thread: N = NPT, B = BSPT.
- Flow rating. The number ending in G is this nozzle's maximum flow in US gallons per minute at 58 psi (4 bar). Two ratings are offered, 12G and 22G. The full flow range is listed in the specifications below.
- Material. SS316 — 316 stainless steel.
- Part Number: 42800-360-3/4B-12G-SS316
Where they're used. Washing drums, kegs, and small process vessels where a full-size tank washer won't fit through the opening. Use with clean, filtered liquid.
How to read the part number
Model
42800
VesselJet® series
Spray coverage
360
360° all-round
Inlet size & thread
3/4B
3/4" female BSPT
Flow rating
12G
12 US gpm max.
at 58 psi (4 bar)
at 58 psi (4 bar)
Material
SS316
316 stainless steel
This product: 42800-360-3/4B-12G-SS316 = 360° all-round coverage · 3/4" BSPT inlet · 12 gpm maximum · 316 stainless steel.
Other options in this series: flow rating 12G or 22G; N = NPT or B = BSPT. Full ordering information, flow tables and dimensions: download the data sheet (PDF).
Specifications
Fit & Connections
ⓘThread Type
BSPT
ⓘConnection Type
Threaded (Female BSPT)
ⓘInlet Size
3/4 in
ⓘFits Through Opening
60 mm (2.36 in)
Overall Length
127 mm (5.00 in)
Hex Size
45 mm (1.77 in)
Weight
0.45 kg (1.0 lb)
ⓘMounting Position
Vertical or horizontal
Flow & Performance
ⓘSpray Coverage
360°
Spray Openings
3
ⓘOperating Principle
Self-rotating (driven by the spray liquid)
ⓘMaximum Tank Diameter
Up to 5 ft (1.5 m)
ⓘLiquid Flow Rate Range
6.1 - 12.2 gpm (23 - 46 l/min at 1 - 4 bar)
Operating Pressure Range
10 - 58 psi (0.7 - 4 bar)
ⓘMaximum Temperature
200 °F (93 °C)
Materials & Build
ⓘProduct Type
Tank Cleaning Nozzle
Brand
VesselJet®
Model
42800
ⓘMaterial
316 stainless steel with PTFE bearing retainers
×
We stock this product across a range of inlet sizes, from small threaded ports up to larger flanged connections. Pick your size based on how much flow your system needs to move — bigger inlets handle higher volumes — and match it to the piping you're connecting into.
×
We sell these three ways, depending on what you already have on hand: just the body (no tip included), just the tip (fits onto a body you already own), or the full assembly with both pieces included.
×
This tells you how much of the tank interior the nozzle reaches. A full 360° model cleans every interior surface; a 180° model sprays downward only, which works well for open-top tanks. Other coverage patterns are available if neither fits your setup.
×
How the nozzle can be mounted inside the tank. Every model in this line works hanging straight down; several also work mounted upward, sideways, or at an angle, depending on your tank's layout.
×
Most of our threaded fittings use a tapered-thread standard — NPT (National Pipe Thread) is the most common in North America, with BSPT (British Standard Pipe Taper) common internationally. Check your existing plumbing or fittings to confirm which standard your system uses before ordering; other thread types are available on request.
×
NPT and BSPT threads cover most of our catalog. A number of models also come in flanged or quick-connect versions, and sanitary (hygienic) connections are available on select nozzles for food, beverage, and pharmaceutical applications.
×
Flow figures are given in gallons or liters per minute at the specific operating pressures we've listed. Running the nozzle at a higher pressure than shown will generally increase flow beyond these published numbers — contact us if you need a rating at a pressure we haven't listed.
×
This part is available in different material options to match your chemical exposure, wear conditions, and expected service life. See the option selected above for what's offered on this model, or contact us if you need a material not listed here.
×
The largest tank diameter a given rotating nozzle is built to clean effectively. Choose a model rated for a diameter that matches or exceeds your tank's interior width so the spray pattern reaches all the way to the walls.
×
The highest fluid temperature this nozzle is rated to handle continuously. Running above this limit can shorten the part's service life or affect its seals and materials — check your process temperature against this rating before ordering, and contact us if you need a higher-temperature option.
×
The smallest tank opening or manway the nozzle assembly needs to pass through for installation. Measure your actual opening before ordering — if it's smaller than this, the assembly won't fit through, and a different mounting approach may be needed.
×
How the nozzle achieves its rotating spray pattern. A fluid-driven design uses the reaction force of the liquid itself to rotate the nozzle — no motor, electricity, or external power source is required, so it runs on nothing but your system's existing flow and pressure.
Product Downloads

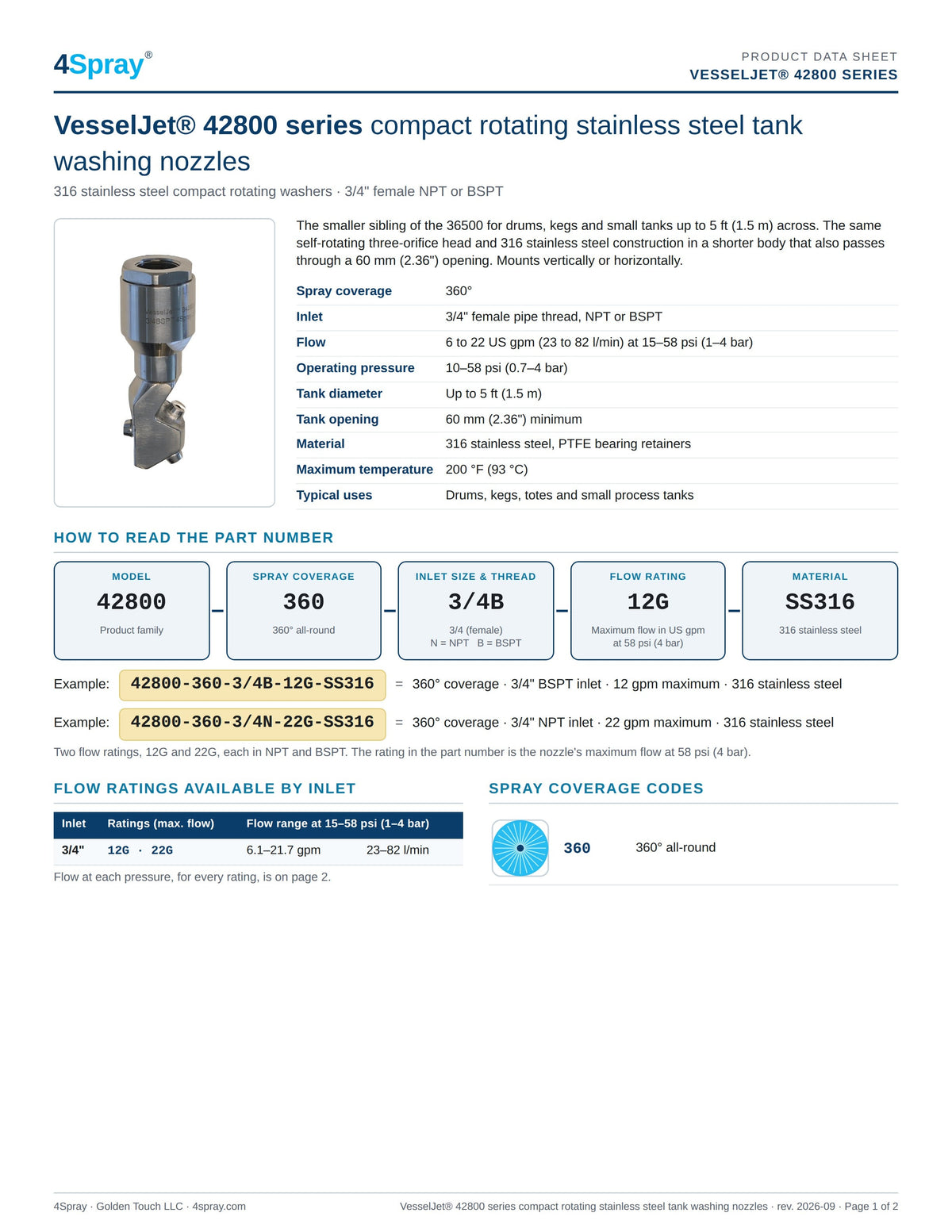

VesselJet® 42800 series data sheetPDF · ordering information, flow tables, dimensions

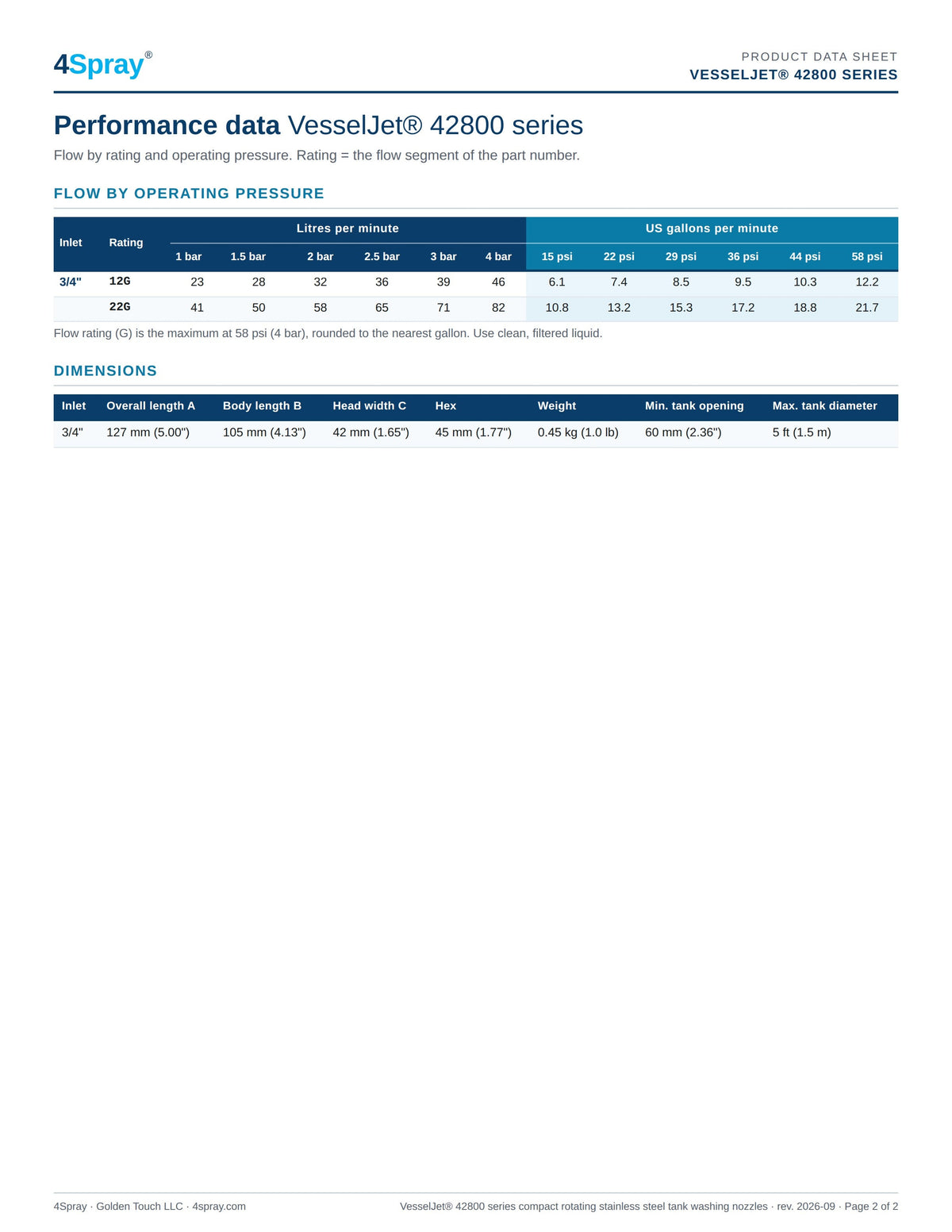

Performance dataPDF · flow by pressure, dimensions
