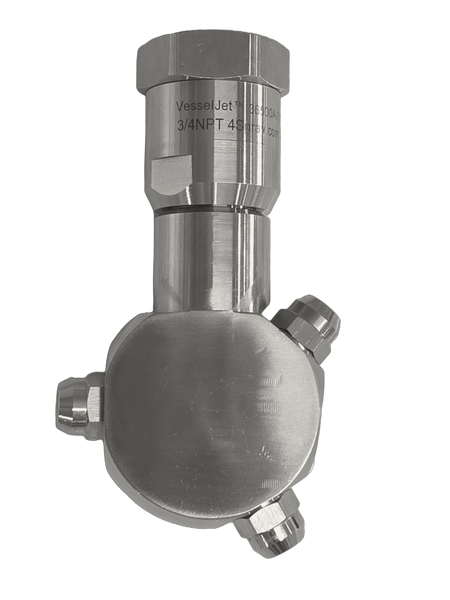

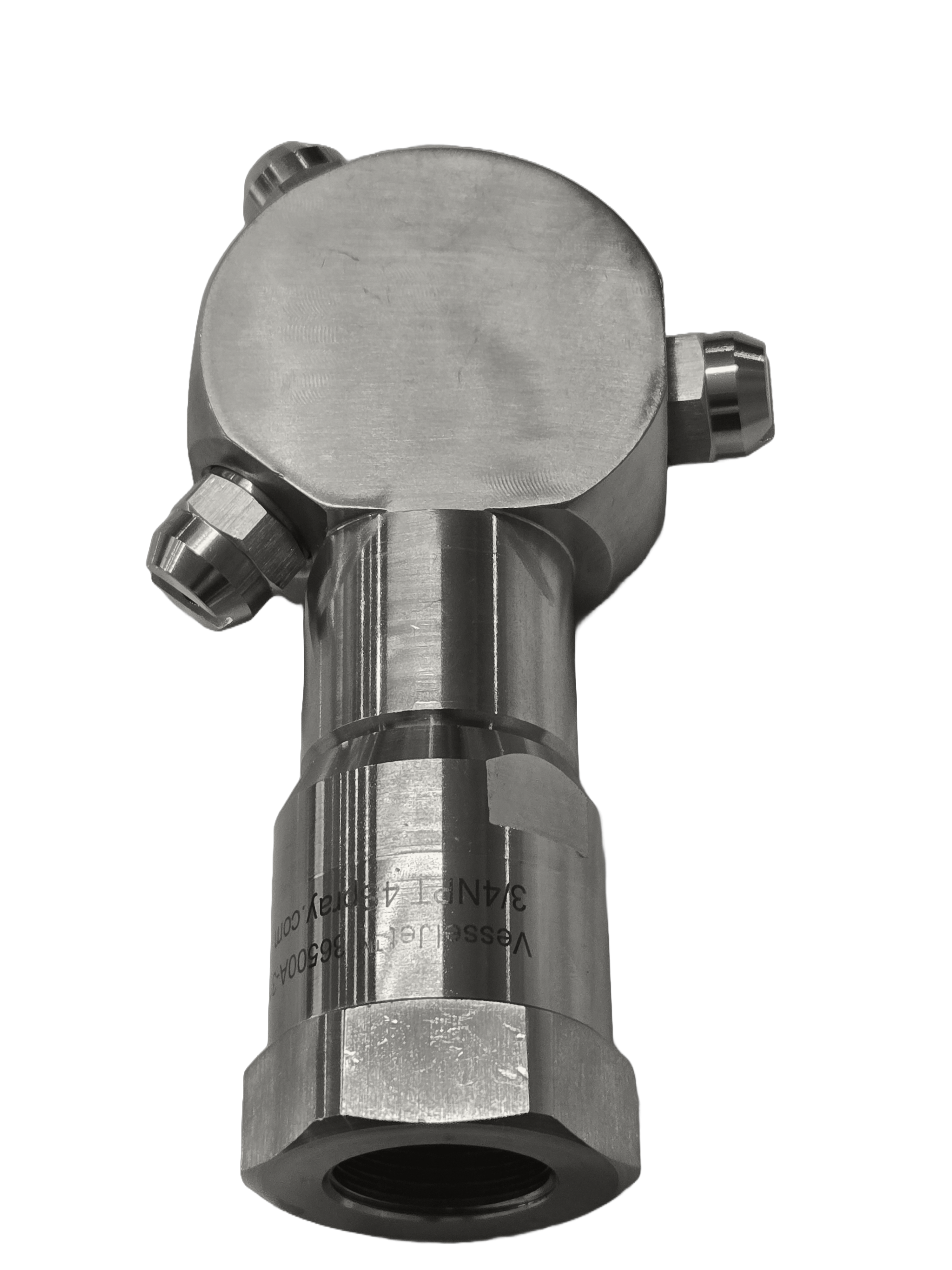

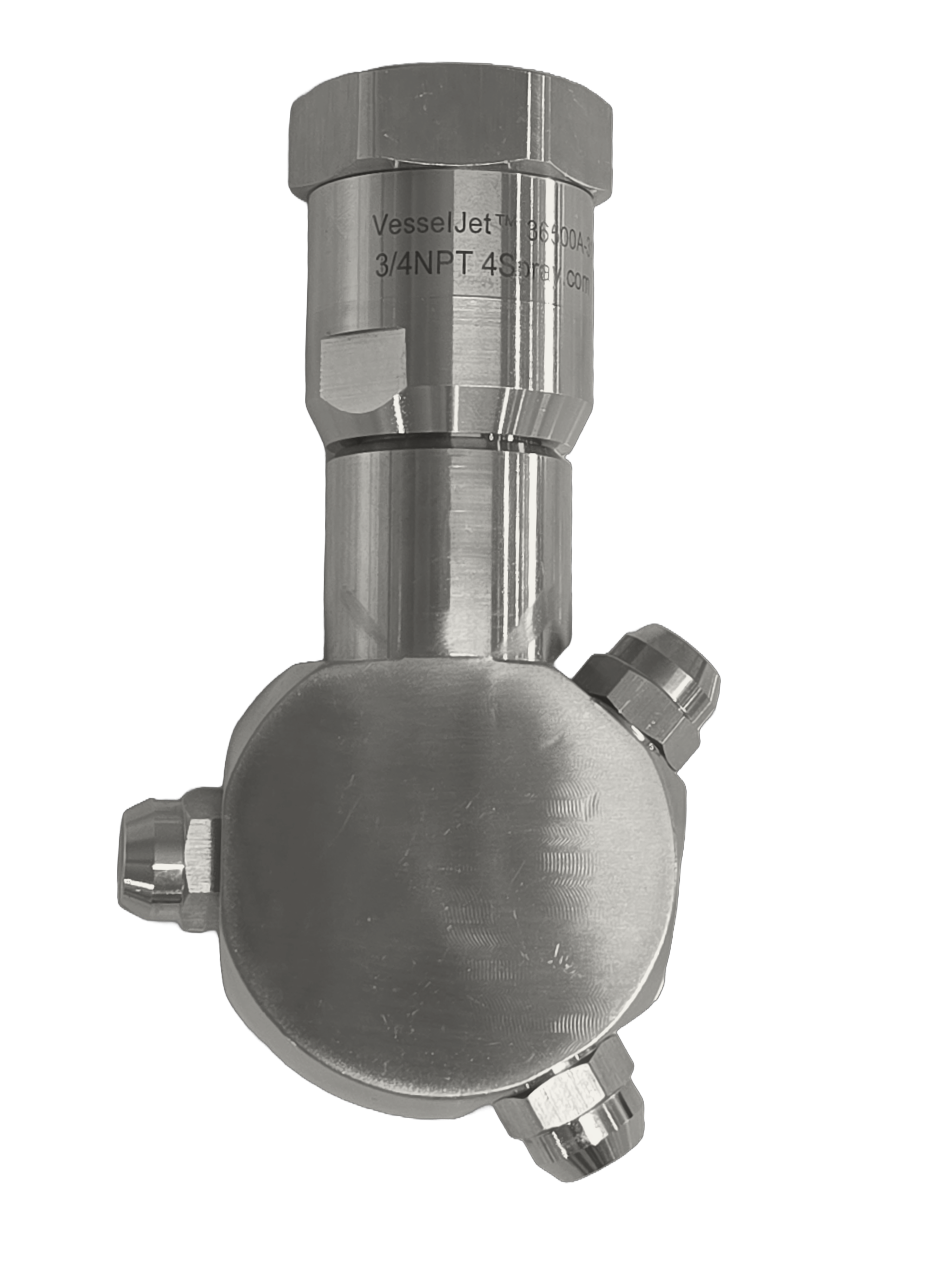

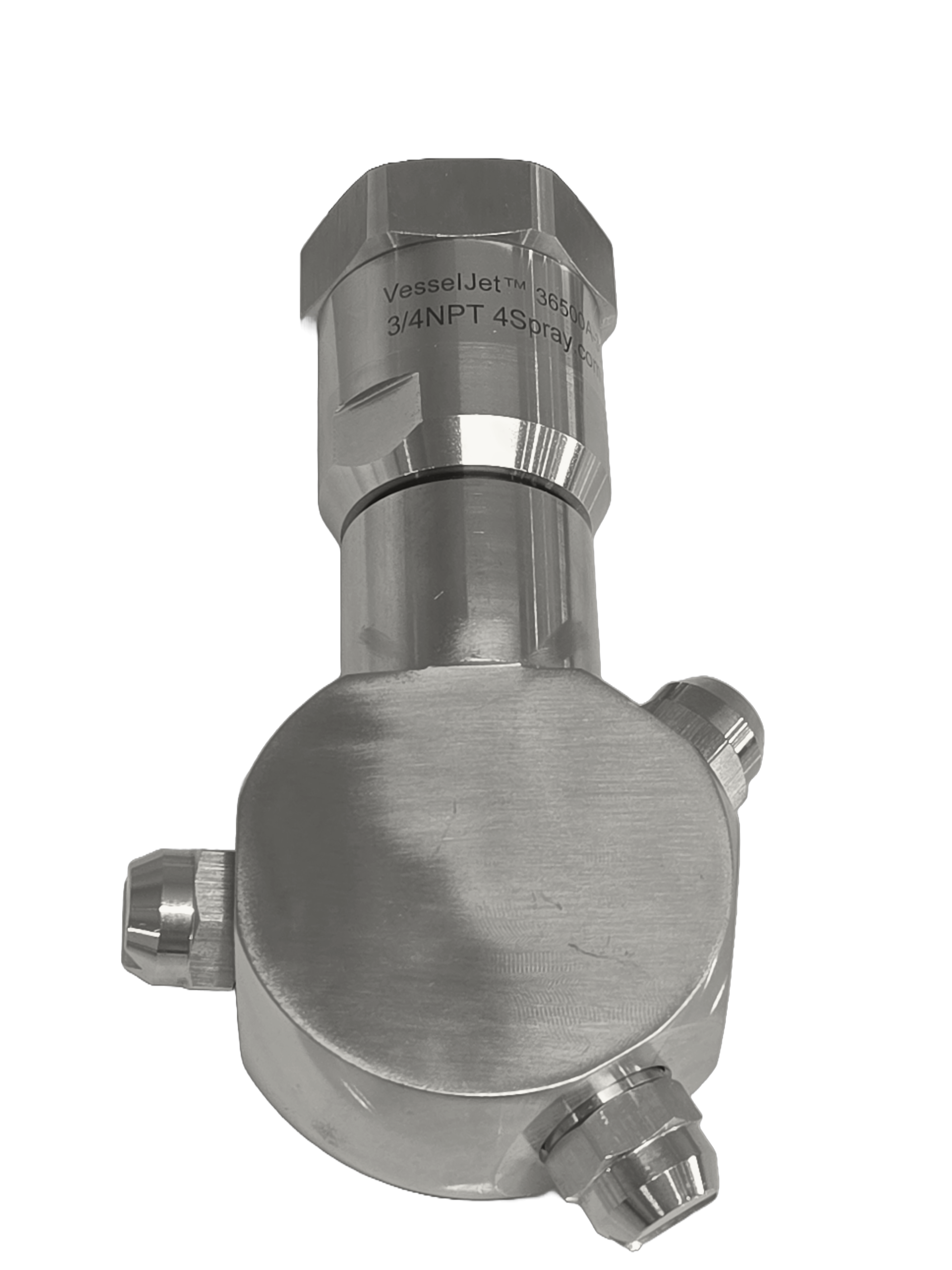

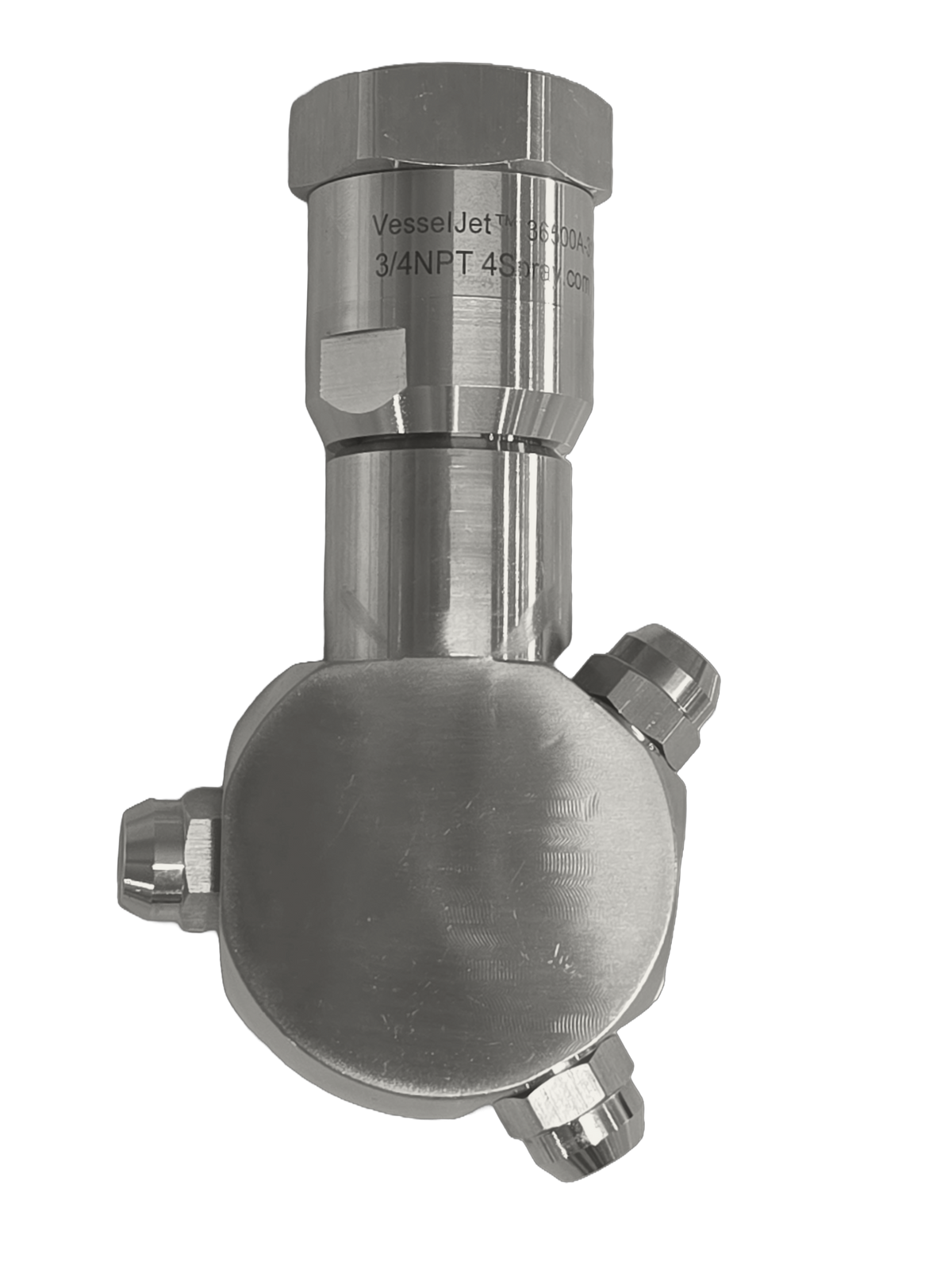

VesselJet™ Nozzle, 36500A-316SS45-316SS
Regular price
$499.00
Couldn't load pickup availability
Product Configuration
⚙
Inlet Connection Thread Type: NPT>
Inlet Connection Type: Brass>
| Quantity | Price |
|---|---|
| Buy 5 | $465 / Each |
| Buy 10 | $433 / Each |
| Buy 20 | $403 / Each |
| Buy 50 | $376 / Each |
General Information
Description
- This rotating spray unit with flat-pattern output is designed to rinse and clean compact vessels such as small tanks and barrels commonly used in food and chemical applications.
- Cleaning fluid flow powers the rotation of a spray head equipped with three flat-pattern outlets, creating continuous internal movement during operation.
- Strategically placed openings ensure uniform distribution, reaching all interior surfaces of the container.
- The unit is manufactured from durable, corrosion-resistant materials and is rated for sustained use at operating temperatures up to 350°F (177°C).
- Optimal results are achieved when operated with clean, single-pass, or low-particulate cleaning fluids.
- Part Number: 36500A-316SS45-316SS
Specification Summary
Impact Group
Low
Inlet Connection Size
3/4 in
Inlet Connection Thread Type
NPT
Inlet Connection Type
Threaded (Female NPT)
Liquid Flow Rate Range
22.9 - 55.1 gpm
Material
316 Stainless Steel
Maximum Tank Diameter
Up to 8 ft
Maximum Temperature
350 °F
Operating Principle
Fluid-driven Reactionary Force
Product Type
Tank Cleaning Nozzle
Spray Coverage
360°
×
Hydraulic nozzle components are offered in a wide range of inlet sizes, from smaller threaded connections to larger flanged configurations. Inlet size selection is typically based on required flow rate and system design considerations. Larger inlet sizes generally support higher flow capacities, and multiple size options are available to match different applications.
×
Threaded inlet connections are commonly provided using tapered pipe thread standards. NPT and BSPT are the most frequently used thread types. Additional thread options may be available for specific configurations or application requirements.
×
Most models are offered with NPT or BSPT threaded connections. Select versions support additional thread types, as well as flange, quick-connect, or sanitary connections.
.×
Defines the operating flow range, typically measured in gallons per minute or liters per minute.
×
Spray and process components are manufactured using materials selected to meet common industrial operating conditions. Standard material options include brass, carbon steel, various stainless steel grades, hardened stainless steels, engineered plastics, and carbide materials. Material choice influences corrosion resistance, abrasion resistance, and expected service life. Alternate materials may be available upon request.
×
Indicates the largest internal tank diameter for which a specific rotating cleaning nozzle is designed to operate effectively.
×
Products are typically categorized based on supplied configuration:
- Nozzle Body: Supplied without a spray tip
- Tip: Supplied without a nozzle body
- Assembly: Complete unit including both nozzle body and spray tip
×
Provided for flat spray nozzles with elliptical orifices. It is the diameter of a circular orifice that would pass the same flow.
×
.
×
Specifies the portion of the vessel interior that is cleaned. Full 360° coverage supports complete internal cleaning, while 180° downward patterns are available for open-top vessels. Additional coverage configurations may also be offered.
×
Describes acceptable installation orientations within the tank. All models function correctly when mounted vertically downward, with select designs also supporting upward, horizontal, or angled installation.
×
Describes acceptable installation orientations within the tank. All models function correctly when mounted vertically downward, with select designs also supporting upward, horizontal, or angled installation. ×
Specifies the portion of the vessel interior that is cleaned. Full 360° coverage supports complete internal cleaning, while 180° downward patterns are available for open-top vessels. Additional coverage configurations may also be offered.×
Hydraulic spray nozzles are often assigned a numerical value within their part identification to indicate output capacity. This designation generally reflects the volume of liquid delivered when the nozzle operates at its specified spray pressure.×
×
×
Products are typically categorized based on supplied configuration:
- Nozzle Body: Supplied without a spray tip
- Tip: Supplied without a nozzle body
- Assembly: Complete unit including both nozzle body and spray tip
×
.
×
×
Specifications
Configuration
Capacity Size
45
Inlet Connection Size
3/4 in
Inlet Connection Thread Type
NPT
Inlet Connection Type
Threaded (Female NPT)
Material
316 Stainless Steel
Model
36500
Product Type
Tank Cleaning Nozzle
Operating Pressure Range
10 - 60 psi
Standard Features
Brand
VesselJet™
Impact Group
Low
Liquid Flow Rate Range
22.9 - 55.1 gpm
Maximum Free Passage
74 µm
Maximum Recommended Tank Diameter
Up to 8 ft
Maximum Temperature
350 °F
Minimum Tank Opening
2.38 in
Operating Principle
Fluid-driven Reactionary Force
Recommended Strainer Mesh
200
Spray Coverage
360°
Tank Mounting Options
Vertical/Downward, Vertical/Upward
